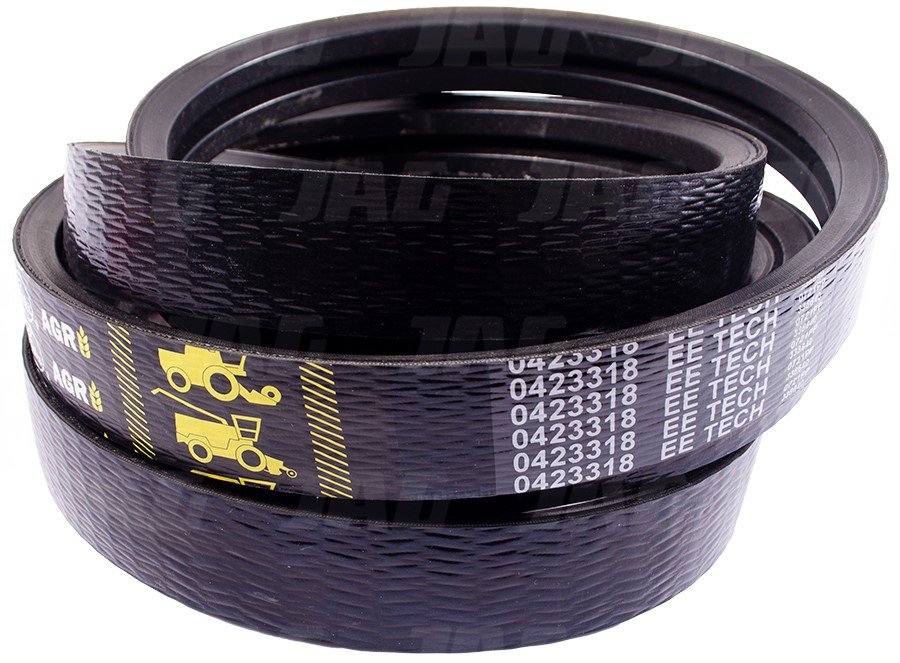

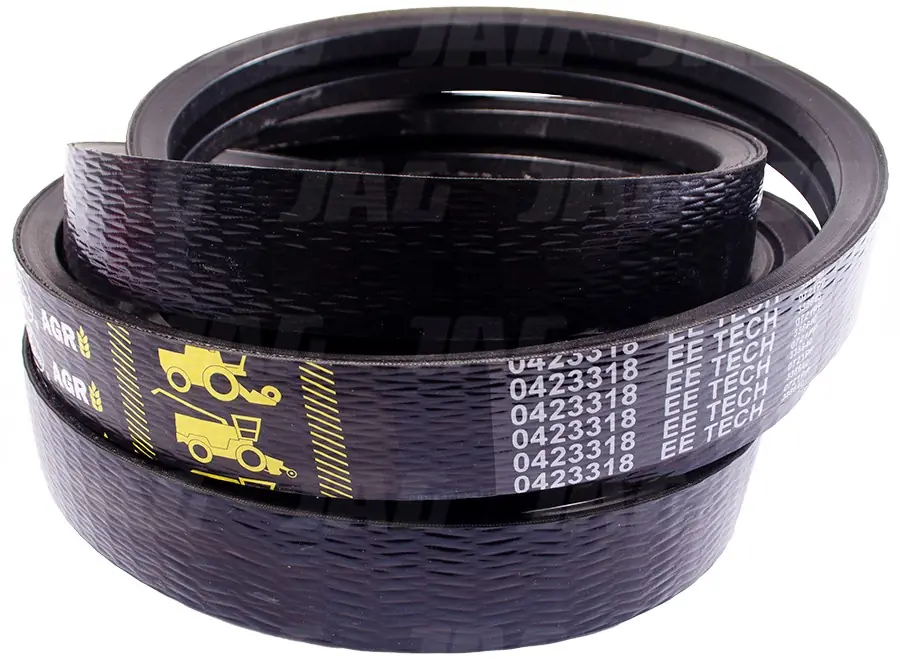

| Belt numbers |
What machine it fits |
Where located |
| 644890/749712 |
LEX 450-780 |
STRAW CHOPPER DRIVE/STRAW DISCHARGE |
| 644961 |
LEX 570,580,600,730-770 |
SEPERATION DRIVE |
| 644181/744874 |
LEX 570,580,600 |
V-BELT SUCTION BELT BLOWER SYSTEM |
| 660566 |
570,600.730-750.740-760 |
CLEANING SYSTEM FAN DRIVE |
| 660409 |
DOM 108-118 108-128VX/ MEGA 203-204 /208-218 MED 310-330 |
GRAIN TANK INTERMED DRIVE BELT |
| 644781 |
LEX 410 – 780 |
THRESHING MECHDRIVE – DRIVE FORSUCTION BLOWER |
| 644885 |
LEX 580-779 |
STRAW CHOPPER DRIVE BELT |
| 644965 |
LEX 580-780 |
THRESHING MECHDRIVE – THRESHING DRUM DRIVE |
| 667453 |
LEX 440-460.465.470.510-530.540-560.560-575.640-670 |
THRESHING MECHDRIVE – TENSION. FOR THRESH.MECHANISM DRIVE BELT |
| 644016 |
MEGA 203-204/350 / ,EDION 310-330 |
GROUND DRIVE / DRIVE TENSIONER |
| 660587/644884 |
LEX 580,600,595,760.770.780 |
THRESHING MECHDRIVE – TENSION. FOR THRESH.MECHANISM DRIVE BELT |
| 746508 |
LEX 510-530.520-530.560.540-560.550-560 MONT.570.560-575.580.600 |
HYDRAULIC PUMP DRIVE BELT |
| 661541/84061279 |
New H (CR Elevation (9060, 9070, 9080), CX (740, 760, 780, 8030, 8040, 8050) |
STRAW ELEVATOR DRIVE |
| 84073457 |
New.H . CX – 720 —–8090 |
GRAIN ELEVATOR BELT |
| 84045256 |
New.H CX 720 —–8090 |
|
| 644209/84057874 |
CX – 720 —–8090 |
SHAKER SHOE SYSTEM V BELT |
| 628978 |
LEX 570.580.585-560.600.750.730-750.740.740-750.760.770.780 |
MAIN DRIVE- STRAW DISCHARGE DRIVE BELT |
| 661451 |
MEGA 203-218 |
GROUND DRIVE/MAIN DRIVE |
| 667452 |
LEX 650.570.580.585 |
THRESHING MECHDRIVE – TENSION. FOR THRESH.MECHANISM DRIVE BELT |
| 644016 |
COM 114.115 116-228 680/675. MEDION 310.330. MEGA203/204. MEGA 350 |
DRIVE TENSIONER BELT |
| 667248 |
LEX410-430.415.420.430.450.440-460.465.470.475.480.485.510.520.530.540-560.570.580-760 |
DRUM VARIABLE SPEED DRIVE |
| 667250 |
LEX |
GRAIN TANK UNLOADING DRIVE/DELIVERY |
| 667249 |
LEX 405-410.410-430.415-430.420-430.450.440-460.465.470.480.485.510-530.520-530.540-780 |
THRESHING MECHANISM/ IMPELLER DRUM DRIVE |
| 644892 |
LEX510-530.560.540-560.570.580.585.600.620-630.670.640-670.730-750.740-750.760.770 |
MAIN DRIVE -CLUTCH FOR CUTTERBAR |
| 603017 |
DOM 108-118.106.76.78.86.88.88VX.96.98.98VX. MEGA 202 .203/204 |
SIEVE PAN AND AUGER DRIVE |
| 667457 |
LEX 405.410.410-430.415.420.450.440-460.450.465.470.480.510-530.540-56.570.580-760 |
CLEANING SYSTEM DRIVE |
| 544164 |
MED 330-310.MEGA 203.204.208-218 350.360-370 |
THRESHING MECHDRIVE – TENSION. FOR THRESH.MECHANISM DRIVE BELT |
| 660762 |
LEX 620-630.640-670-730-750-740-760.760-780 |
GRAIN DELIVERY DRIVE |
| 84041095 /644866 |
LEX 480-485,560-570 580 760-670 New Holland TC5040 5050 TC5060 TC5070 TC5080 |
SIEVE PAN DRIVE |
| 661337 |
MEGA 202 203/204/ DOM 108-128 |
CUTTERBAR DRIVE |
| 644016 |
MED 330-310 MEGA 203/204.350 |
DRUM VARIABLE SPEED DRIVE |
| 629035 / 176475 |
DOM 106 108-118 |
DRUM VARIABLE SPEED DRIVE |
| 661345 |
DOM 108-118 .108-128. 88VX 98 VX, MEGA 202 203-204 |
ROTARY SCREEN DRIVE |
| 84007307 |
TF78 TX62 TX63 TX64 TX65 TX66 TX67 TX68 |
ALTERNATOR V BELT |
| 61360 |
DOM 106 108-118, 76, 78,96,98,3/204 |
STRAW CHOPPER |
| 744965 |
LEX 570,580,585,590-595.600.620-670.730-780 |
MAIN DRIVE – THRESHING DRUM DRIVE |
| 644902 |
LEX 405.410.420.430.510-530.570-600.730.780 |
MAIN DRIVE – THRESHING DRUM DRIVE |
| 667957 |
LEX 410,405,410-430.570.575.580.600.730-750.740-760.770.780 |
MAIN DRIVE- CLEANING SYSTEM – FAN DRIVE |
| 829094 |
LEX 410,405,410-430.440.450. 570.575.580.600.620.630.730-750.740-760.770.780 |
DRIVES- THRESHING MECH, HYDRAULIC REEL DRIVE |
| 661244 |
DOM 118-108.108-128 VX. LEX 540-770 |
ROTARY SCREN DRIVE . FEEDER UNIT |
| 667454 |
LEX 405-580 |
THRESHING MECH – CUTTER BAR DRIVE |
| 644889 |
LEX 480- 770 . TUCANO 320.340.430.420.430-450 460-570 |
STRAW CHOPPER DRIVE |
| 765985 |
LEX 440 – 770 |
FEEDER UNIT , FEED RAKE. |
| D41979900 |
MF38 . DRONNINGBERG D9000,FENDT 6300 6330 8300 |
MAIN ENGAGEMENT THRESHING |
| 749886 |
LEX 470 – 770 |
HYBRID INTERMEDIATE DRIVE |
| 661301 |
DOM 88 VX 98 VX DOM 108-118 COM 116-228 MED 310-330 |
CUTTERBAR CLUTCH – CUTTER BAR DRIVE |
| 644209 |
LEX 408-485 |
THRESHING MECH -SIEVE PAN DRIVE |
| 667249 |
LEX 405-780 |
THRESHING MECH – FEEDER DRUM |
| 644419 |
DOM 108-128 COM 116-228 MEDION 330H |
THRESHING MECH – CUTTERBAR DRIVE |
| 767057 |
DOM 38 – 118 MEGA 202 -204. 208/218. |
FAN PUMP |
| 802931/544216 |
AVERO 160 -240, COMMANDOR 116-228, DOM 130-150 DOM 48-98 |
THRESHING MECH – FEEDER DRUM |
| 644843 |
LEX 405-530 |
COOLING SYSTEM SUNCTION BLOWER |
| 671012 |
DOM 76-98 |
THRESHING MECHANISM DRIVE BELT |
| 713506 |
COMMANDOR 114-228 DOM 68-118 MEGA 202 -218 |
CUTTERBAR KNIFE DRIVE (WOBBLE DRIVE) |
| 603337 |
COMMANDOR 114-228, DOM 76-118 MEDION 330-340,MEGA 202 -218, 350-370 TUCANO 320-580 |
VARIABLE SPEED DRIVE FAN – SIEVE PAN DRIVE |
| 661093 |
AVERO 160 -240, COM 116-228, DOM 108-118.130 LEXION 440-460 MEGA 208-218 |
STRAW DISCHARGE BELT/ GRAIN TANK DELIVERY DRIVE |
| 629908 |
COMMANDOR 114 -228, DOM 76-106 MEGA 202-218 |
CABIN AIR CONDITIONING |
| 670224 |
DOM 38-106 MEGA202-218 |
VARIABLE SPEED DRIVE |
| 660423 |
LEX 570-760 |
FAN VARIABLE SPEED DRIVE. FAN INTERMEDIATE DRIVE |
| 661298 |
DOM 108-128 LEX 480 MEGA 208-218 |
DRUM VARIABLE SPEED DRIVE |
| 673614 |
DOM 48-106 JAGUAR 85/680-695 |
GRAIN TANK INTERMEDIATE DRIVE |
| 629732 |
DOM 76-106 |
STRAW WALKER DRIVE |
| 603427 |
DOM 76-86 |
DRIVE TENSIONER, GROUND DRIVE VARIATOR PULLEY BELT |
| D41987900 |
|
FAN , GRAIN AND RETURN ELEVATOR DRIVE BELT |
| 660488 |
LEX 570-760 |
CLEANING SYSTEM DRIVE, FAN DRIVE |
| D41978300 |
MF 32-38 |
|
